Du-Bye Performance PLUG AND PLAY TB48 MaxxECU PACKAGE

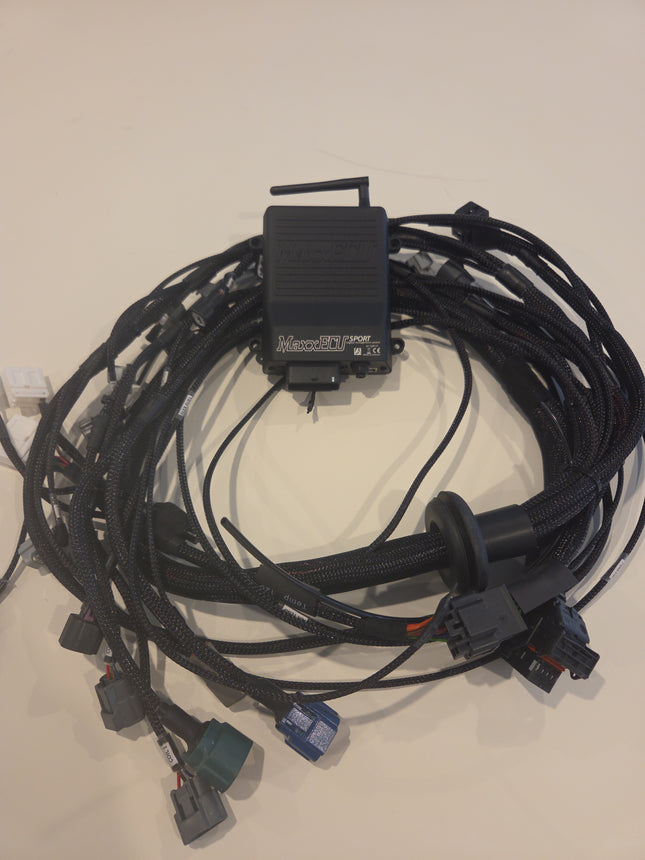

Included in the kit is a full replacement engine harness to suit TB48 GU Patrols, a MaxxECU SPORT and mount to replace the factory ecu.
We offer this kit in 3 Variants for Manual and Automatic RE5 models!
1) Base package with no added sensors 2) Aspirated package with Wideband sensor and Intake air temp sensor3) Boosted package with Wideband, IAT, Fuel and Oil pressure sensors, Flex Fuel sensor, Oil temperature sensor and Boost control solenoidAll looms will be terminated for the following: Injectors x 6, Ignition Coils x 6, Factory CAS, Factory water temp sensor and wideband 02 and CANBUS Expansion on the IN-CAB side of the harness.
The following will NOT be terminated, but will be in the loom ready to be cut to size and terminated...... Intake temp sensor, fuel and oil pressure sensors, flex fuel sensors, oil temp sensor. and boost control solenoid. We will supply the terminating plug with which ever sensor you purchase from us. This is very easy to do and we are here to help you and guide you on how to do this.
We can make custom looms to suit 8HP, Drive by wire and many more features or add ons. If you would like a custom loom, Please contact us and we can call you to discuss.
WE ARE AUSTRALIAS ONLY ELITE DASH UAE DEALER!
E-10:
A unique 7-inch touchscreen display.
Provides high resolution and supports 3D graphics.
Fully customized android system assisted by ED application.
Instant boot up.
Supported ECUs: MaxxECU, Stock ECU, Motec, Syvecs, Link, Holley, Haltech, E38, LS3, L99, 6L80.
Easy to wire in and install.
Shows important inputs and the CANBUS data.
Clear check engine codes for Stock ECU’s.
Custom Alarm System for aftermarket ECU’s.
Special anti-glare system that can handle direct sunlight without reflections, providing a clear display.
Data Logging.
ADD a keypad, GPS Antenna and reverse camera!
This digital dash fits directly into the Series 4 Nissan Patrol Map pocket above the head unit (between air vents). Wiring is required, it is not plug and play. PLEASE CONTACT US before ordering so we can check your setup and make sure it will work with your ECU! DOES NOT WORK ON FACTORY MANUAL TB48 ECU.
- LSU4.9- Wide band Oxygen / Lambda sensor- 65cm length
Specifications
Application and model suitability:- Generic use- Custom applications
FOR USE WITH MAXXECU, HALTECH, MOTEC, LINK AND MOST OTHER AFTERMARKET ECU
PKP-3500-SI-MT The PKP-3500-SI-MT represents a significant step forward in CANbus keypad technology, equipped with a refined design that includes thirteen push buttons with customizable icon inserts and two push-activated rotary encoders. This keypad also features four additional analog and digital inputs, facilitating the direct connection of 5V sensors to the CANbus network. Its compact design and inclusion of rotary encoders save considerable dash space and expand vehicle functionality. The IP67-rated PKP-3500-SI-MT2 version provides increased detent torque for superior haptic feedback.
For use with aftermarket ECU such as MaxxECU, Link and more!
PKP-3500-SI is a compact keypad based on CAN protocol. It comes equipped with fifteen keys with interchangeable 15mm inserts. The keypad is water and dust resistant, and can be installed both inside and outside the cockpit. RGB led lights and the ease with which icons can be switched in and out make it possible for the user to customize each key in a wide range of variations.
For use with aftermarket ECU such as MaxxECU, Link and more!
PKP-2600-SI is a compact keypad based on CAN protocol. It comes equipped with twelve keys with interchangeable 15 mm inserts. The keypad is water and dust resistant, and can be installed both inside and outside the cockpit. RGB led lights and the ease with which icons can be switched in and out make it possible for the user to customize each key in a wide range of variations
For use with aftermarket ECU such as MaxxECU, Link and more!
PKP-2500-SI is a compact keypad based on CAN protocol. It comes equipped with ten keys with interchangeable 15 mm inserts. The keypad is water and dust resistant, and can be installed both inside and outside the cockpit. RGB led lights and the ease with which icons can be switched in and out make it possible for the user to customize each key in a wide range of variations.
For use with aftermarket ECU such as MaxxECU, Link and more!
PKP-2400-SI is a compact keypad based on CAN protocol. It comes equipped with eight keys with interchangeable 15 mm inserts. The keypad is water and dust resistant, and can be installed both inside and outside the cockpit. RGB led lights and the ease with which icons can be switched in and out make it possible for the user to customize each key in a wide range of variations.
For use with aftermarket ECU such as MaxxECU, Link and more!
PKP-2300-SI is a compact keypad based on CAN protocol. It comes equipped with six keys with interchangeable 15 mm inserts. The keypad is water and dust resistant, and can be installed both inside and outside the cockpit. RGB led lights and the ease with which icons can be switched in and out make it possible for the user to customize each key in a wide range of variations.
For use with aftermarket ECU such as MaxxECU, Link and more!
4 Button Can Keypad
PKP-2200-SI is a compact keypad based on CAN protocol. It comes equipped with four keys with interchangeable 15 mm inserts. The keypad is water and dust resistant, and can be installed both inside and outside the cockpit. RGB led lights and the ease with which icons can be switched in and out make it possible for the user to customize each key in a wide range of variations.
For use with aftermarket ECU such as MaxxECU, Link and more!
Engine Compatibility
Cylinder Support:
All 3 to 12-cylinder 4-stroke engines
Up to 8 cylinders sequential injection/ignition
Up to 12 cylinders in wasted spark / batch fire
Lambda Control:
Integrated wideband controller
Supports Bosch LSU 4.2 and 4.9 sensors
Trigger Inputs:
2 × Crank/cam trigger inputs
VR or Digital compatible
Automatic trigger level detection
Sensor Inputs
Temperature Inputs:
2 × Extra NTC temperature inputs (e.g., oil/fuel temp)
Analog Inputs:
6 × Extra 0–5V analog inputs (e.g., MAP, TPS, pressure sensors)
Digital Inputs:
4 × Extra digital inputs (VR, Hall, or switches)
Knock Sensor Inputs:
2 × Dedicated knock channels for real-time detonation monitoring
EGT Inputs:
8 × Type-K or Type-N thermocouple channels
1200°C / 2200°F range Via separate harness
Outputs
Injector Outputs 8 × Peak & Hold injector drivers (high/low impedance compatible)
Ignition Outputs:8 × Logic-level ignition outputs (external amplifiers required)
General Outputs:9 × Low-side outputs (GND switching) for fans, solenoids, relays2 × High-side outputs (+12V switching)
Motor Outputs:4 × Dedicated outputs for stepper motors, E-throttle, etc.
Advanced Control Features
Launch Control
Flat-Shift / Shift-Cut
Multi-stage Boost Control
Closed-loop Lambda
Advanced Knock Control
Traction Control
Built-in Data Logging
Advanced warning and safety systems
Processing & Connectivity
Fast Cortex-based processor (model-specific, typically Cortex M3 or M4)
USB PC Communication (via MTune software)
CAN Bus for external module and dash integration
Harness & Housing
Separate Harness for EGT Inputs
Professional-grade build quality for harsh environments and motorsport
Engine Compatibility
Sequential Support: Up to 6 cylinders
Wasted Spark Ignition: Up to 12 cylinders
E-Throttle support: Full electronic throttle control
Core Hardware
Processor: Superfast ARM Cortex M3, 120MHz
PC Interface: Fast, reliable USB communication
Bluetooth: Wireless monitoring and diagnostics
Aluminium Case: Durable, sealed for automotive/motorsport use
Inputs
Trigger Inputs:
2 × Trigger inputs (supports VR and Hall sensors)
Analog Sensor Inputs:
Intake Air Temperature (IAT)
Throttle Position Sensor (TPS)
Coolant Temperature (CLT)
2 × Extra analog temperature inputs (0–5V or NTC)
Digital Inputs:
2 × Extra digital inputs (e.g., clutch, brake, flex sensor)
Outputs
Injector Outputs:
6 × High or low impedance injector outputs
Ignition Outputs:
6 × Logic-level ignition outputs (external amplifiers required)
Flexible General Purpose Outputs (GPO):
7 × Configurable outputs for solenoids, valves, lights, etc.
Motor Outputs:
2 × High-current (2A) outputs (GPO 10–11), ideal for stepper or DC motors
Integrated Sensors
MAP Sensor: Built-in 400kPa (4 bar absolute / ~43.5 psi boost)
Wideband Lambda: Built-in controller for Bosch LSU 4.2 / 4.9 (no external unit required)
Communications
USB: High-speed PC tuning and diagnostics via MTune
Bluetooth: Wireless access for monitoring
CAN Bus: Integration with dashboards, modules, and accessories
Advanced Features
Launch Control
Boost Control (Multi-stage)
Traction Control
Shift-Cut
Internal Data Logging
Advanced Engine Protection and Warning System
Engine Configuration Support
Sequential Control: Up to 4 cylinders
Wasted Spark Ignition: Up to 8 cylinders
Tuning & Software
MTune PC Software: Fast and intuitive configuration via USB
Built-in 400kPa MAP Sensor (up to 3.94 bar / 58 psi absolute pressure)
Superfast Cortex M3 120MHz Processor: Lightning-fast calculations for real-time controlInputs & Outputs
Fuel & Ignition
4 Injector Outputs: High impedance only
4 Ignition Outputs: No internal ignition amplifiers (external required)
Sensor Inputs
Analog Inputs (Standard):- Intake Air Temperature (IAT)- Throttle Position Sensor (TPS)- Coolant Temperature (CLT)
Extra Analog Inputs:2 × 0–5V inputs (e.g., wideband O2, fuel pressure, etc.)Digital Inputs:
2 × Digital inputs (Hall-compatible)
1 × Trigger input (VR or Hall)
Optional HOME signal input (via available digital input) for sequential operation
Outputs
4 General Purpose Outputs (GPO): Ground-switching type (GND)
Communication
CAN Bus: For expansion and integration with dashboards, modules, and loggers
Control Features
Boost Control: Triple-stage
Launch Control & Shift-Cut: For enhanced track performance
Traction Control: Configurable for various surfaces and power level
Advanced Warning System: Monitors and alerts for critical engine conditions
Internal Logging: Record data directly on the ECU for post-run analysis
Build & Connectivity
Waterproof Aluminium Case: Rugged for motorsport and harsh environments
USB Connectivity: Easy PC-based tuning and firmware updates
Core Specifications
Processor: Ultra-fast ARM-based controller
Case: Sealed waterproof aluminium housing
Connectivity: Fully compatible with all MaxxECU software and harnesses for easy drop-in upgrade
Engine Compatibility
Sequential Support: Up to 12 cylinders
Ignition Outputs: 12 × logic-level outputs
Injector Outputs: 16 × configurable for high or low impedance injectors
Sensor Inputs
Built-in MAP Sensor: 400 kPa (3 bar boost / ~43.5 psi)
Wideband Lambda:- Integrated controller for 2 × WBO sensors - Compatible with Bosch LSU 4.2 and 4.9
Knock Sensing: Dual knock inputs with advanced filtering
EGT Inputs: 12 × Type-K/N thermocouple inputs
Analog Inputs: - 16 × 0–5V configurable inputs - 6 × Additional temperature sensor inputs (NTC compatible)
Digital Inputs: - 10 × General digital inputs (switches/sensors) - 4 of these can be used with VR sensors (e.g., speed or trigger)
Outputs & Drive Control Injector & Ignition: - 16 injector outputs (sequential, semi-sequential, batch fire) - 12 ignition outputs (logic level)
General Purpose Outputs (GPO): - 30 total outputs - 8 × High-side (+12V) drivers - 22 × Low-side (GND switching) outputs
Additional Signal Outputs: - 2 × 0–5V outputs (e.g., for analog gauges or control modules) - 1 × 5–10V sensor supply output (for sensors requiring elevated voltage)
Motor Outputs: Supports dual E-Throttle (DBW) control with built-in drivers
Communications & Expandability
Dual CAN Bus: Full communication with dashes, loggers, sensors, etc.
USB Communication: High-speed PC tuning with MTune Software
Backwards Compatibility: Connectors, software, and settings fully compatible with other MaxxECU models
Advanced Features
Multi-stage boost control
Traction and launch control
Full DBW and dual throttle support
Closed-loop WBO feedback
Real-time knock control
Flexible safety and warning logic
Extensive onboard data logging
Engine Compatibility
Sequential Support: Up to 6 cylinders
Wasted Spark Ignition: Up to 12 cylinders
Tuning & Processing
MTune PC Software: Intuitive interface with fast USB communication
Superfast Cortex M3 120MHz Processor: Ensures high-speed and reliable control
Built-in 400kPa MAP Sensor: Supports up to 4 bar absolute pressure (~43.5 psi of boost)
Built-in Wideband Controller: Supports Bosch LSU 4.2 or 4.9 sensors—no external controller required
Inputs & Outputs Sensor Inputs
Standard Analog Inputs: Intake Air Temperature (IAT) Throttle Position Sensor (TPS) Coolant Temperature (CLT)
Extra Analog Inputs: 4 × 0–5V configurable inputs (e.g., for fuel/oil pressure, EGT, flex-fuel sensor, etc.)
Digital Inputs: 2 × Trigger Inputs (Primary + Home/Cam – VR or Hall compatible) 2 × Extra Digital Inputs (e.g., for switches, speed sensors)
Fuel & Ignition Outputs 6 Injector Outputs: High impedance only 6 Ignition Outputs: Logic-level outputs (no built-in ignition drivers; external igniters required)
General Outputs 4 × General Purpose Outputs (GPO): Configurable for boost control, idle valves, fans, etc.
Integrated Functions Built-in Wideband Lambda Controller: Direct O2 feedback without external modules Boost Control: Multi-stage and fully tunable Launch Control & Shift-Cut: Designed for motorsport use Traction Control: Adjustable via MTune Internal Data Logging: Record runtime data directly on the ECU Advanced Warning System: Custom alert thresholds and protections
Construction & Connectivity USB Communication: Fast and reliable PC connection for live tuning and diagnostics Rugged Design: Compact and durable, built for harsh automotive environments CAN Bus: Full communication support with digital dashes, loggers, and external modules
