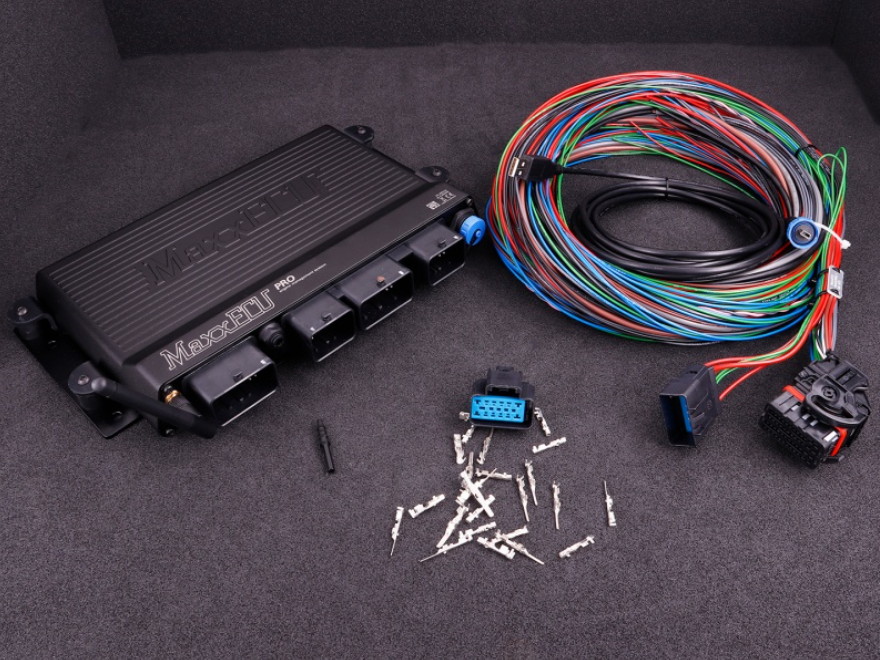

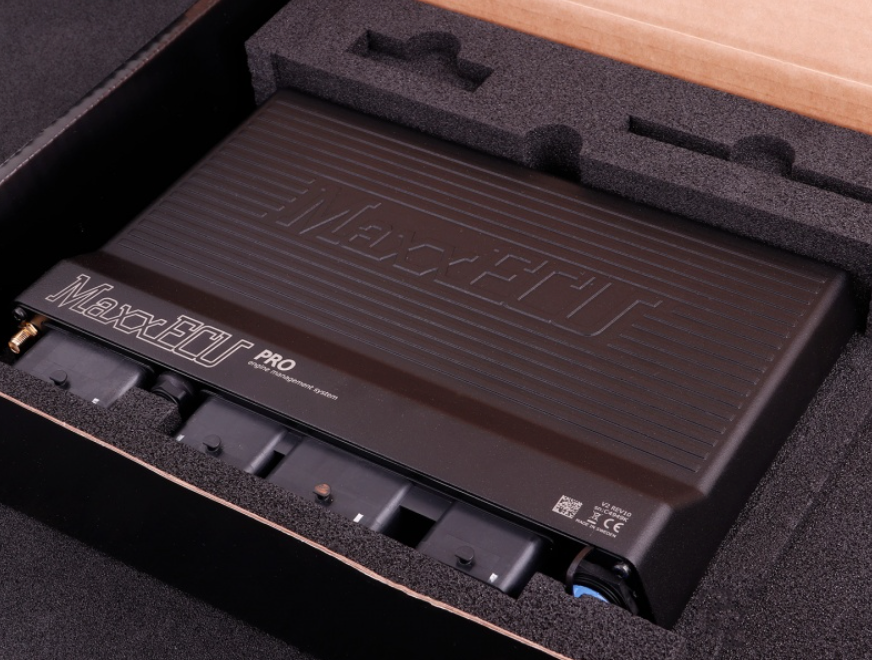

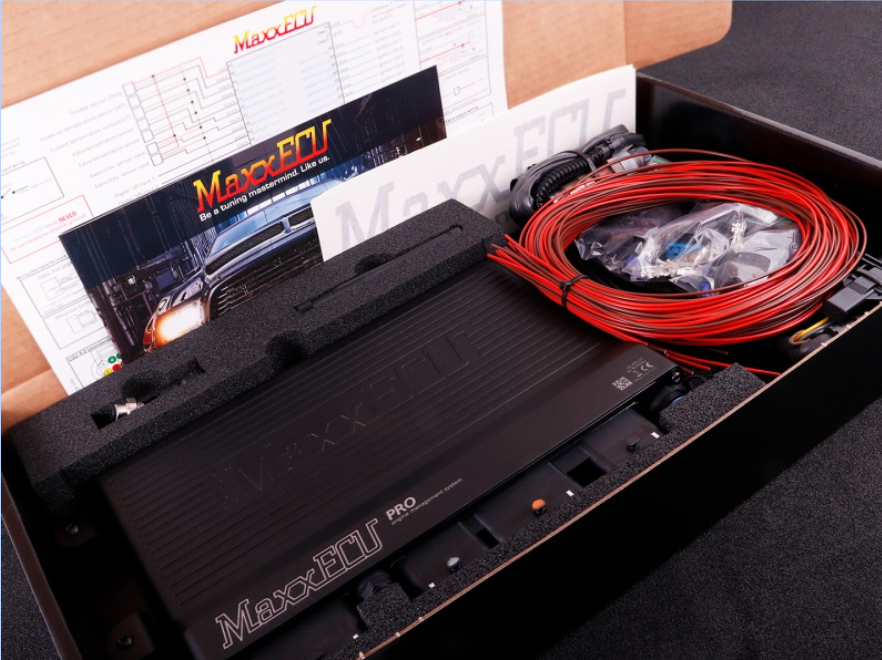

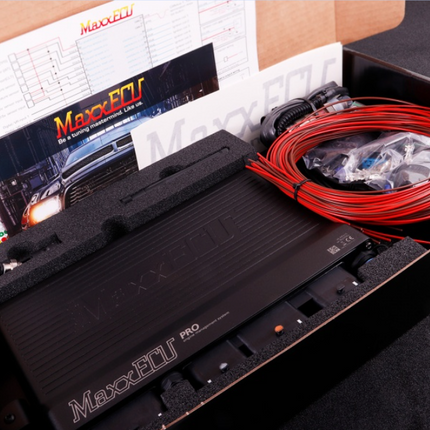

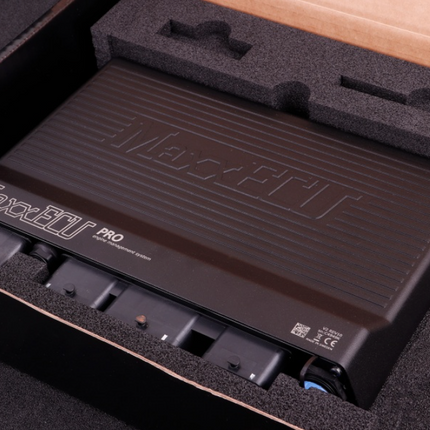

MaxxECU PRO

Description

Core Specifications

  • Processor: Ultra-fast ARM-based controller
  • Case: Sealed waterproof aluminium housing
  • Connectivity: Fully compatible with all MaxxECU software and harnesses for easy drop-in upgrade

Engine Compatibility

  • Sequential Support: Up to 12 cylinders
  • Ignition Outputs: 12 × logic-level outputs
  • Injector Outputs: 16 × configurable for high or low impedance injectors

Sensor Inputs

  • Built-in MAP Sensor: 400 kPa (3 bar boost / ~43.5 psi)
  • Wideband Lambda:
    - Integrated controller for 2 × WBO sensors
    - Compatible with Bosch LSU 4.2 and 4.9
  • Knock Sensing: Dual knock inputs with advanced filtering
  • EGT Inputs: 12 × Type-K/N thermocouple inputs
  • Analog Inputs:
    - 16 × 0–5V configurable inputs
    - 6 × Additional temperature sensor inputs (NTC compatible)
  • Digital Inputs:
    - 10 × General digital inputs (switches/sensors)
    - 4 of these can be used with VR sensors (e.g., speed or trigger)
  • Outputs & Drive Control Injector & Ignition:
    - 16 injector outputs (sequential, semi-sequential, batch fire)
    - 12 ignition outputs (logic level)
  • General Purpose Outputs (GPO):
    - 30 total outputs
    - 8 × High-side (+12V) drivers
    - 22 × Low-side (GND switching) outputs
  • Additional Signal Outputs:
    - 2 × 0–5V outputs (e.g., for analog gauges or control modules)
    - 1 × 5–10V sensor supply output (for sensors requiring elevated voltage)
  • Motor Outputs: Supports dual E-Throttle (DBW) control with built-in drivers

Communications & Expandability

  • Dual CAN Bus: Full communication with dashes, loggers, sensors, etc.
  • USB Communication: High-speed PC tuning with MTune Software
  • Backwards Compatibility: Connectors, software, and settings fully compatible with other MaxxECU models

Advanced Features

  • Multi-stage boost control
  • Traction and launch control
  • Full DBW and dual throttle support
  • Closed-loop WBO feedback
  • Real-time knock control
  • Flexible safety and warning logic
  • Extensive onboard data logging

Read more

MaxxECU PRO

Product form

Core Specifications Processor: Ultra-fast ARM-based controller Case: Sealed waterproof aluminium housing Connectivity: Fully compatible with all MaxxECU software and harnesses... Read more

$3,825.00
