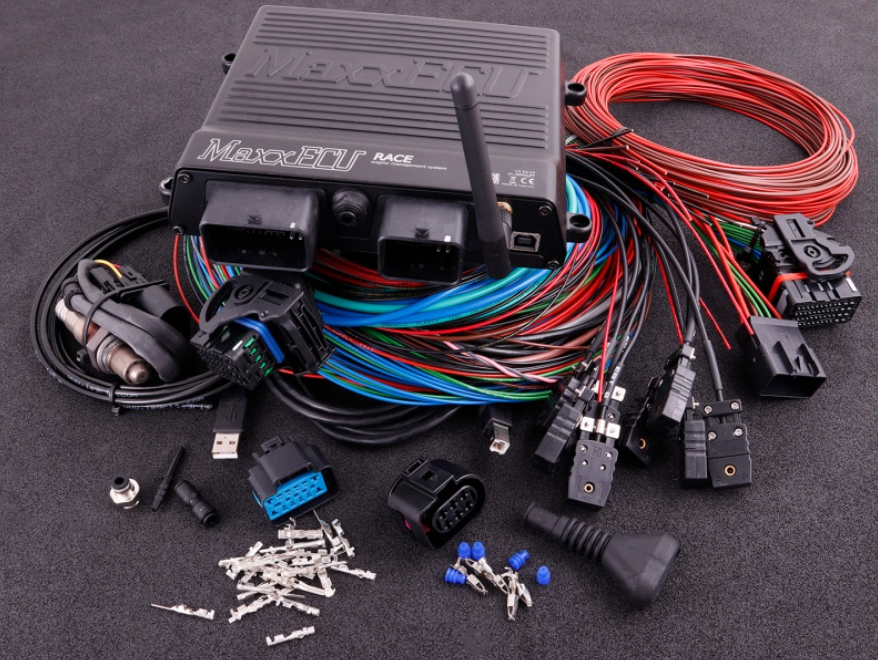

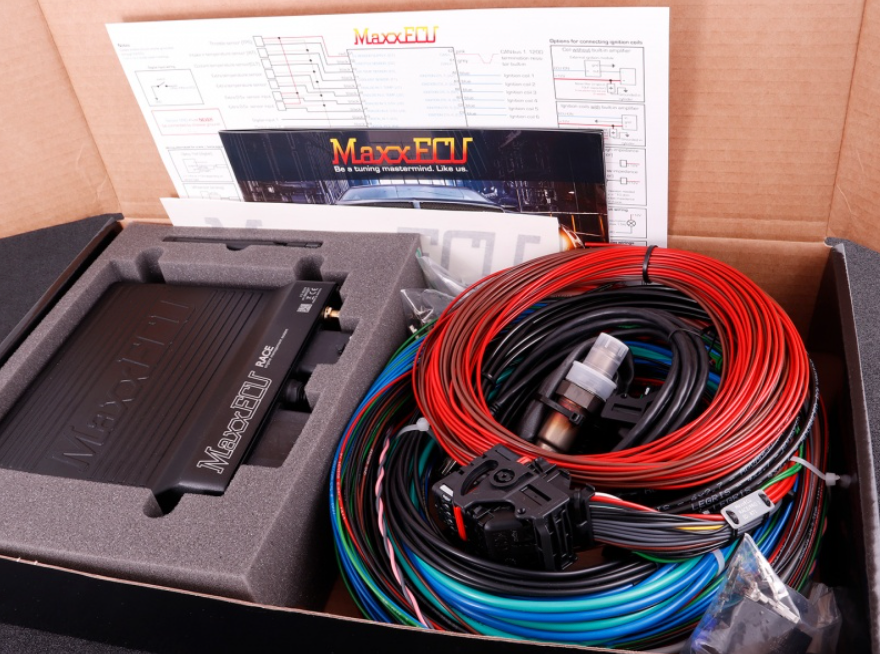

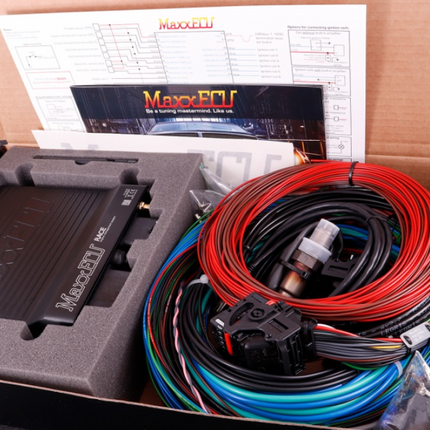

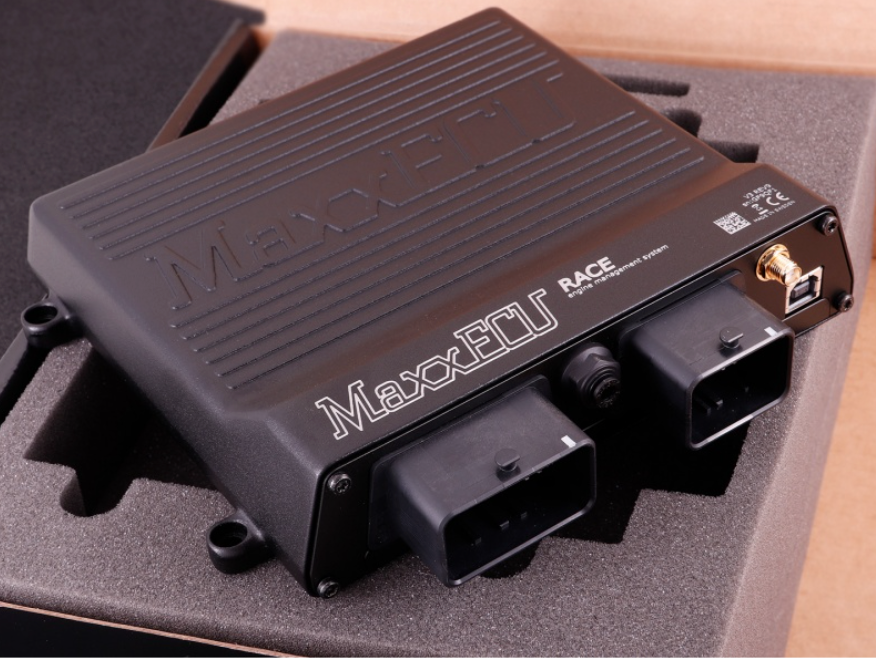

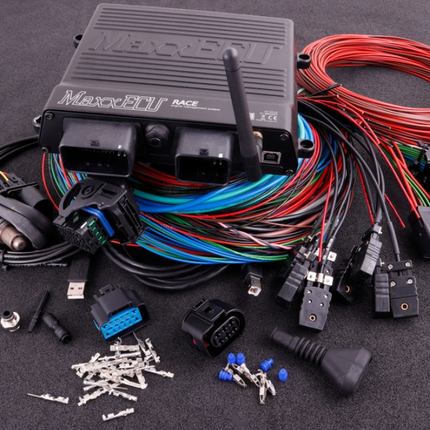

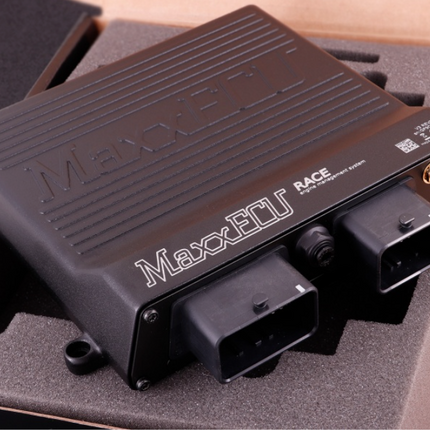

MaxxECU RACE

Description

Engine Compatibility

  • Cylinder Support:
    • All 3 to 12-cylinder 4-stroke engines
    • Up to 8 cylinders sequential injection/ignition
    • Up to 12 cylinders in wasted spark / batch fire
  • Lambda Control:
    • Integrated wideband controller
    • Supports Bosch LSU 4.2 and 4.9 sensors
  • Trigger Inputs:
    • 2 × Crank/cam trigger inputs
    • VR or Digital compatible
    • Automatic trigger level detection

Sensor Inputs

  • Temperature Inputs:
    • 2 × Extra NTC temperature inputs (e.g., oil/fuel temp)
  • Analog Inputs:
    • 6 × Extra 0–5V analog inputs (e.g., MAP, TPS, pressure sensors)
  • Digital Inputs:
    • 4 × Extra digital inputs (VR, Hall, or switches)
  • Knock Sensor Inputs:
    • 2 × Dedicated knock channels for real-time detonation monitoring
  • EGT Inputs:
    • 8 × Type-K or Type-N thermocouple channels
    • 1200°C / 2200°F range Via separate harness

Outputs

  • Injector Outputs 8 × Peak & Hold injector drivers (high/low impedance compatible)
  • Ignition Outputs:8 × Logic-level ignition outputs (external amplifiers required)
  • General Outputs:9 × Low-side outputs (GND switching) for fans, solenoids, relays2 × High-side outputs (+12V switching)
  • Motor Outputs:4 × Dedicated outputs for stepper motors, E-throttle, etc.

Advanced Control Features

  • Launch Control
  • Flat-Shift / Shift-Cut
  • Multi-stage Boost Control
  • Closed-loop Lambda
  • Advanced Knock Control
  • Traction Control
  • Built-in Data Logging
  • Advanced warning and safety systems

Processing & Connectivity

  • Fast Cortex-based processor (model-specific, typically Cortex M3 or M4)
  • USB PC Communication (via MTune software)
  • CAN Bus for external module and dash integration

Harness & Housing

  • Separate Harness for EGT Inputs
  • Professional-grade build quality for harsh environments and motorsport

Read more

MaxxECU RACE

Product form

Engine Compatibility Cylinder Support: All 3 to 12-cylinder 4-stroke engines Up to 8 cylinders sequential injection/ignition Up to 12 cylinders... Read more

$2,180.00

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Engine Compatibility

    • Cylinder Support:
      • All 3 to 12-cylinder 4-stroke engines
      • Up to 8 cylinders sequential injection/ignition
      • Up to 12 cylinders in wasted spark / batch fire
    • Lambda Control:
      • Integrated wideband controller
      • Supports Bosch LSU 4.2 and 4.9 sensors
    • Trigger Inputs:
      • 2 × Crank/cam trigger inputs
      • VR or Digital compatible
      • Automatic trigger level detection

    Sensor Inputs

    • Temperature Inputs:
      • 2 × Extra NTC temperature inputs (e.g., oil/fuel temp)
    • Analog Inputs:
      • 6 × Extra 0–5V analog inputs (e.g., MAP, TPS, pressure sensors)
    • Digital Inputs:
      • 4 × Extra digital inputs (VR, Hall, or switches)
    • Knock Sensor Inputs:
      • 2 × Dedicated knock channels for real-time detonation monitoring
    • EGT Inputs:
      • 8 × Type-K or Type-N thermocouple channels
      • 1200°C / 2200°F range Via separate harness

    Outputs

    • Injector Outputs 8 × Peak & Hold injector drivers (high/low impedance compatible)
    • Ignition Outputs:8 × Logic-level ignition outputs (external amplifiers required)
    • General Outputs:9 × Low-side outputs (GND switching) for fans, solenoids, relays2 × High-side outputs (+12V switching)
    • Motor Outputs:4 × Dedicated outputs for stepper motors, E-throttle, etc.

    Advanced Control Features

    • Launch Control
    • Flat-Shift / Shift-Cut
    • Multi-stage Boost Control
    • Closed-loop Lambda
    • Advanced Knock Control
    • Traction Control
    • Built-in Data Logging
    • Advanced warning and safety systems

    Processing & Connectivity

    • Fast Cortex-based processor (model-specific, typically Cortex M3 or M4)
    • USB PC Communication (via MTune software)
    • CAN Bus for external module and dash integration

    Harness & Housing

    • Separate Harness for EGT Inputs
    • Professional-grade build quality for harsh environments and motorsport

    Read more
