TB48 MaxxECU + ZF 8HP Plug & Play Conversion Package
Loom manufacturing time is approximately 3–4 weeks from date of purchase.
Du-Bye Performance is proud to offer our Plug & Play TB48 MaxxECU + ZF 8HP Conversion Package for GU Patrols.
Converting your TB48 Patrol to a ZF 8HP transmission has never been easier. Our complete replacement engine and transmission harness has been designed to make the conversion as close to plug and play as possible, with only one wire required to be pinned into the vehicle.
The package retains factory OEM cluster operation and vehicle functionality, while integrating the TB48 engine, MaxxECU, ZF 8HP transmission, Drive-By-Wire throttle and BMW shifter into one purpose-built harness.
What's Included
The base package includes:
-

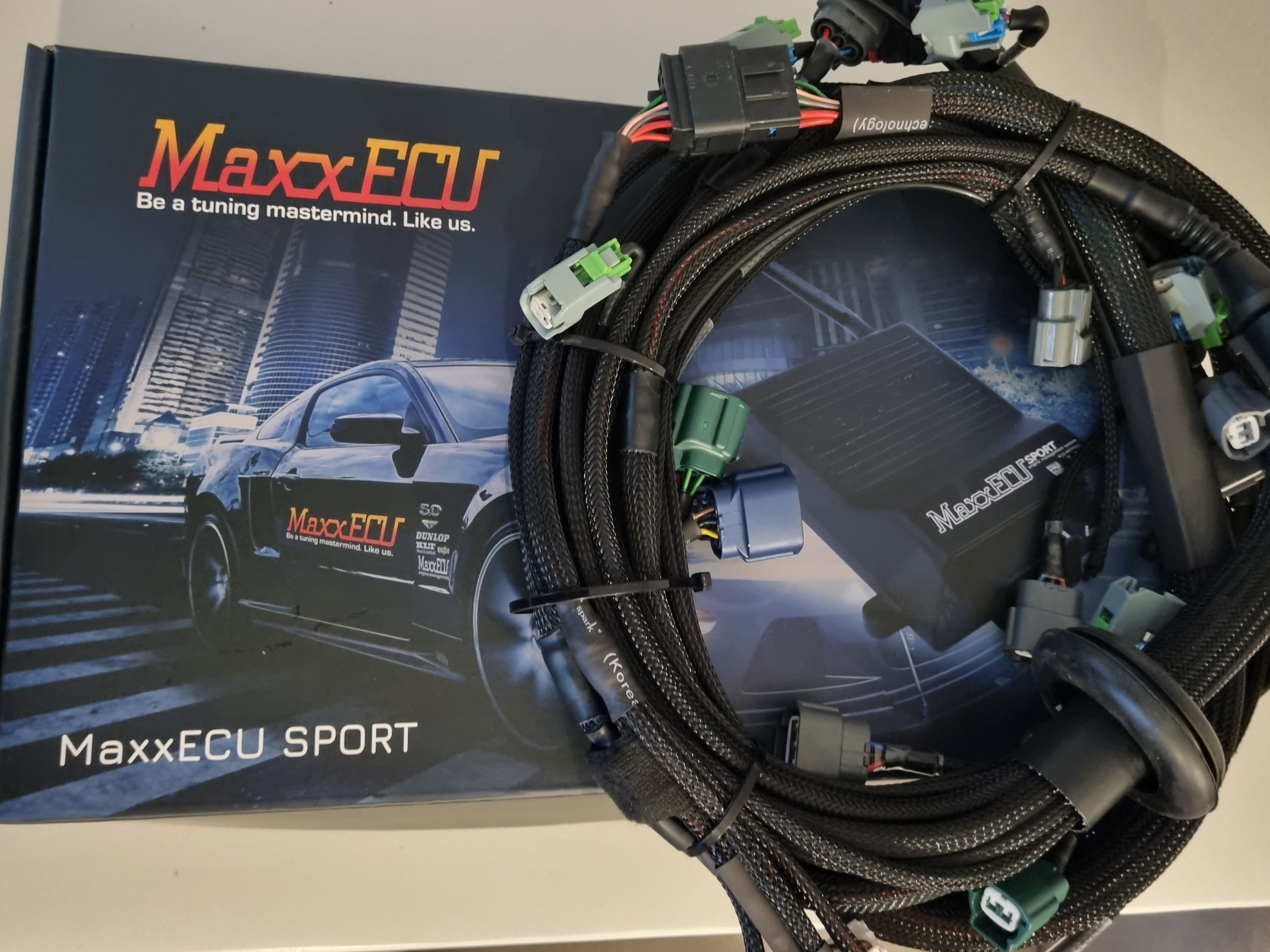

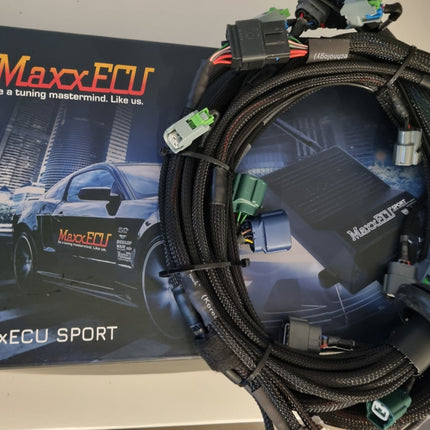

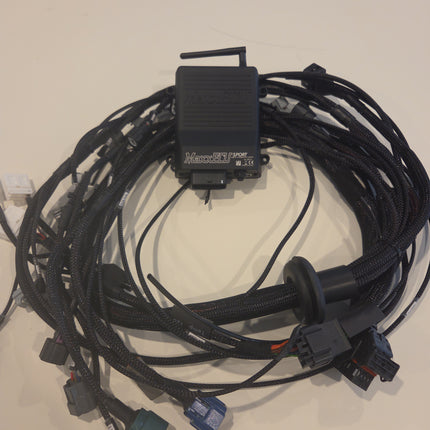

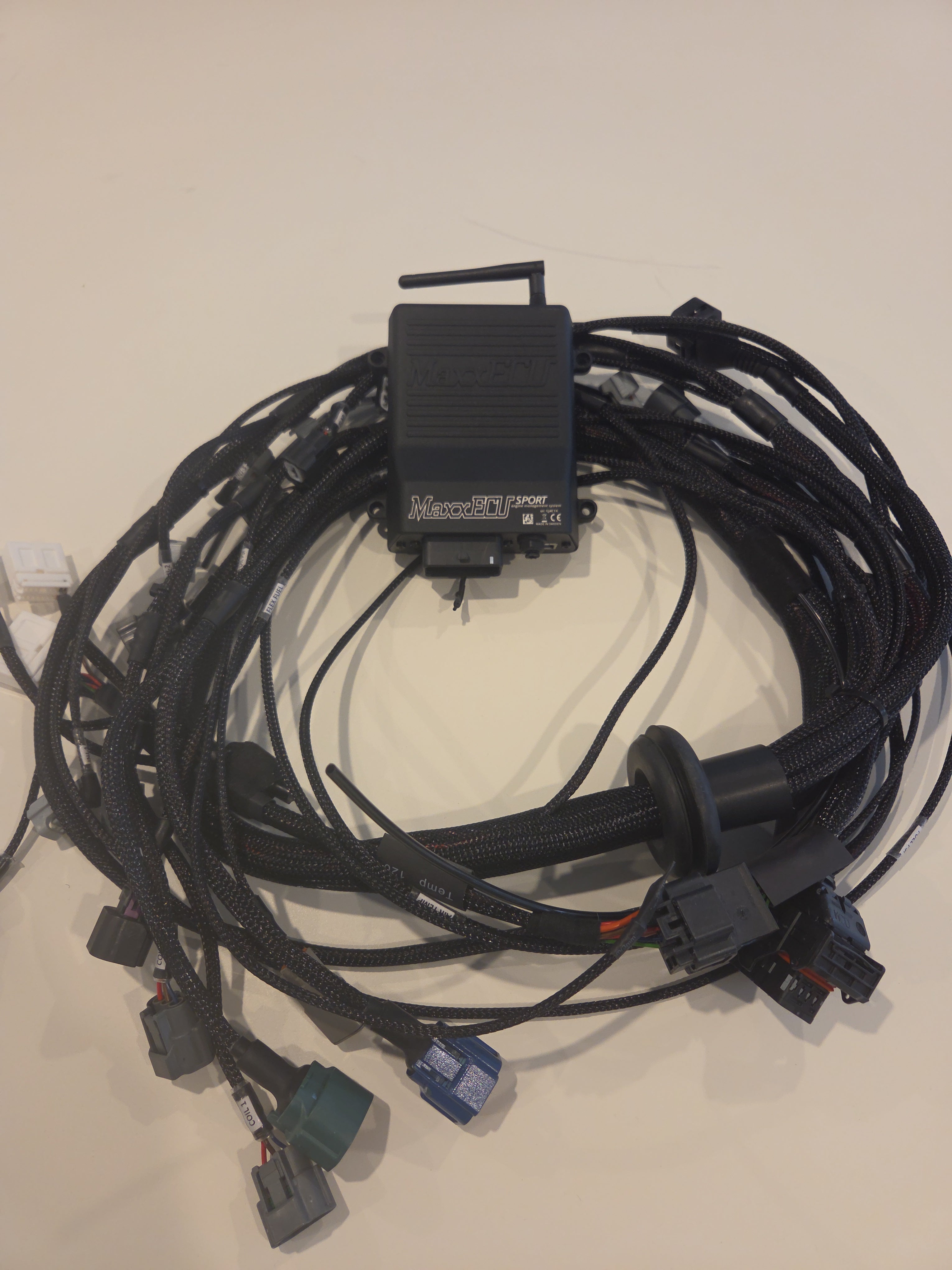

Complete replacement TB48 / ZF 8HP engine and transmission harness
- MaxxECU SPORT
- MaxxECU mounting bracket to replace the factory ECU
- Integrated ZF 8HP transmission wiring
- Integrated Drive-By-Wire wiring
- BMW shifter integration
- In-cabin CAN Bus expansion
- Dedicated 8HP OBD diagnostic port
- Dedicated 8HP power supply
The harness is manufactured specifically for the conversion, eliminating the need to modify or patch together the factory engine harness.
Harness Connections
All looms are supplied fully terminated for:
-
6 × Injectors – your choice of injector connectors
-
6 × Ignition Coils – Factory TB48 or R35 GT-R
- Factory CAS
- Factory coolant temperature sensor
- Factory water temperature sender for manual vehicles
- Bosch LSU 4.9 Wideband O2
- Intake Air Temperature (IAT) sensor
- MAP sensor hose integrated internally through the loom
- Bosch Drive-By-Wire throttle body
-
ZD30 CRD Drive-By-Wire pedal – bolt-in pedal solution
- ZF 8HP transmission connector
- BMW electronic shifter
- Dedicated 8HP OBD diagnostic port
- Dedicated 8HP direct power feed
- CAN Bus expansion connection located inside the cabin
Two Package Options
Option 1 – Loom, ECU & Mount
Perfect for customers who already have their own sensors or want to configure the vehicle to their own requirements.
Includes:
- Complete TB48 / ZF 8HP Plug & Play harness
- MaxxECU SPORT
- ECU mounting bracket
Option 2 – Complete Package with Sensors
For customers wanting a more complete setup ready for tuning and additional engine monitoring.
Includes everything from Option 1, plus:
- Bosch LSU 4.9 Wideband O2 sensor
- Intake Air Temperature sensor
- Oil pressure sensor
- Oil temperature sensor
- Fuel pressure sensor
- Flex Fuel sensor
- Boost control solenoid
Drive-By-Wire Integration
The 8HP package is designed around a full Drive-By-Wire conversion, using a Bosch DBW throttle body and ZD30 CRD electronic accelerator pedal.
Moving to DBW gives the MaxxECU greater control over the engine and allows access to modern features such as:
- Improved idle control
- Cruise control
- Throttle blip / rev matching
- Boost-by-gear
- Launch and torque management strategies
- Advanced throttle control
- Additional engine and transmission control strategies
MaxxECU SPORT
The MaxxECU SPORT provides an excellent entry point for a complete TB48 and ZF 8HP conversion while retaining the flexibility and tuning capabilities of the MaxxECU platform.
Please note that due to the available inputs and outputs of the SPORT ECU, factory Knock Control and Purge Control Solenoid functionality are not supported with this package.
Digital Dash & CAN Expansion
The harness includes an in-cabin CAN Bus expansion connection, making it easy to add additional CAN-based devices.
You can use MDash to display a digital dashboard directly from the MaxxECU via Bluetooth, or integrate compatible aftermarket displays such as:
- Haltech IC-7
- Haltech uC-10
- MoTeC C1212
- Other compatible CAN-based digital displays
Built for a Cleaner 8HP Conversion
Instead of modifying multiple factory harnesses and adding separate wiring for the ECU, transmission, DBW system and shifter, the Du-Bye Performance harness brings the entire conversion together into one purpose-built Plug & Play package.
Whether you're building a naturally aspirated TB48 cruiser or a high-powered boosted setup, this package provides a clean foundation for a modern MaxxECU-controlled TB48 with ZF 8HP transmission conversion.
Need something different?
We can also manufacture custom looms with additional sensors, CAN devices, digital dash integration and other options. Contact Du-Bye Performance to discuss your build and requirements.
