MaxxECU MINI

Description

Engine Configuration Support

  • Sequential Control: Up to 4 cylinders
  • Wasted Spark Ignition: Up to 8 cylinders

Tuning & Software

  • MTune PC Software: Fast and intuitive configuration via USB
  • Built-in 400kPa MAP Sensor (up to 3.94 bar / 58 psi absolute pressure)
  • Superfast Cortex M3 120MHz Processor: Lightning-fast calculations for real-time control
    Inputs & Outputs

Fuel & Ignition

  • 4 Injector Outputs: High impedance only
  • 4 Ignition Outputs: No internal ignition amplifiers (external required)

Sensor Inputs

  • Analog Inputs (Standard):
    - Intake Air Temperature (IAT)
    - Throttle Position Sensor (TPS)
    - Coolant Temperature (CLT)

  • Extra Analog Inputs:
    2 × 0–5V inputs (e.g., wideband O2, fuel pressure, etc.)

    Digital Inputs:

  • 2 × Digital inputs (Hall-compatible)
  • 1 × Trigger input (VR or Hall)
  • Optional HOME signal input (via available digital input) for sequential operation

Outputs

  • 4 General Purpose Outputs (GPO): Ground-switching type (GND)

Communication

  • CAN Bus: For expansion and integration with dashboards, modules, and loggers

Control Features

  • Boost Control: Triple-stage
  • Launch Control & Shift-Cut: For enhanced track performance
  • Traction Control: Configurable for various surfaces and power level
  • Advanced Warning System: Monitors and alerts for critical engine conditions
  • Internal Logging: Record data directly on the ECU for post-run analysis

Build & Connectivity

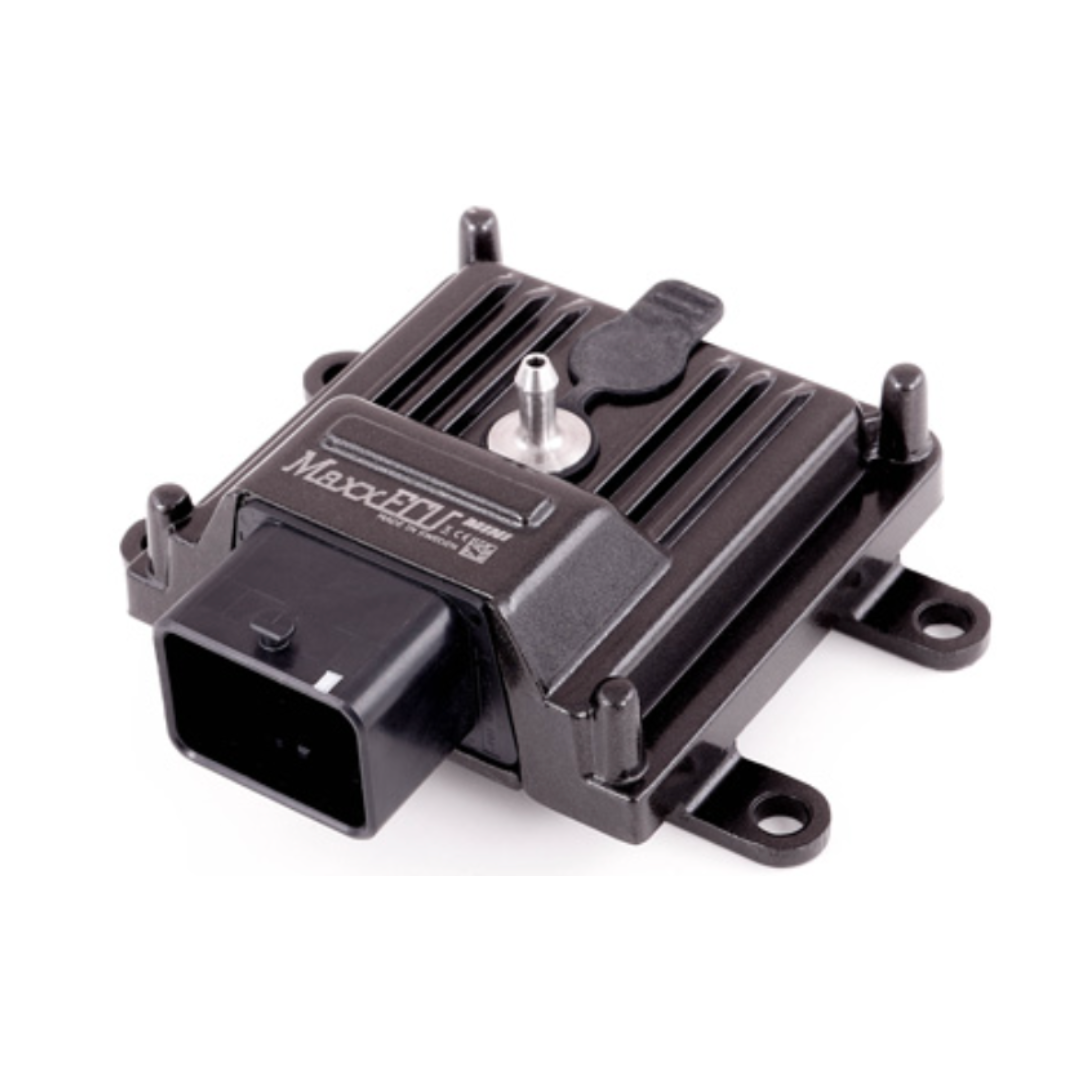

  • Waterproof Aluminium Case: Rugged for motorsport and harsh environments
  • USB Connectivity: Easy PC-based tuning and firmware updates

Read more

MaxxECU MINI

Product form

Engine Configuration Support Sequential Control: Up to 4 cylinders Wasted Spark Ignition: Up to 8 cylinders Tuning & Software MTune... Read more

$875.00
