The OEM alternators available for the TB48 engine are typically rated up to 80 amps and deliver only around 60 amps at idle. In contrast, this heavy-duty 220-amp alternator for the NISSAN TB48 delivers up to 200 amps at cruising speeds and an impressive 180 amps at idle. That’s a gain of 130 amps at idle and up to 190 amps while driving.
This high-output alternator series is built using premium DENSO components, ensuring industry-leading idle performance. Despite featuring a larger, more robust housing, it maintains a true OEM fit with no modifications required. Designed to run cooler and engineered for extreme durability, this 220-amp alternator is a direct-fit replacement for the factory unit on the NISSAN TB48 engine.
Constant 14V Feed
MAIN CHARGE CABLE UPGRADE HIGHLY RECO MMENDEDPROFESSIONAL INSTALLATION HIGHLY RECOMMENDEDLOCAL STOCK
The wait is finally over! Bolt on solution to running large camshafts and eliminating the dreaded VCT rattle and optimising the powerband of your TB48!Engineered and made in Australia Up to 10 degrees advanced or retard
**BALANCERS ARE ORDERED DIRECT FROM THE UAE DUE TO SUPPLY ISSUES WITH ATI IN AUS CURRENTLY**
For Nissan Patrol TB48DE 6-cylinder engines
Dampens torsional crankshaft vibrations at all RPM levels
Protects against engine harmonics
Laser-etched timing marks
SFI 18.1 Certified for competition use
Made in America
Specs
Shell Material: Aluminum
Hub Material: Steel
Inertia Weight: 3 ring
Designed as a direct replacement for the OEM oil pump gears, these billet 4340 steel gears are engineered for performance and reliability. The outer gear measures approximately 77mm in diameter and 15mm in thickness.
The factory sintered gears—made from compressed powdered metal—are known to fail, even with mild engine modifications. They were never intended to withstand high horsepower or high RPM conditions.
HSE gears are precision-machined from high-strength 4340 billet steel and feature the N1-spec 'wave' profile for increased oil flow. Each set undergoes isotropic polishing for a smooth, low-friction finish, ensuring consistent performance under extreme conditions.
Proven in thousands of applications, including engines producing over 1000 horsepower, HSE billet gears offer a significant upgrade in strength and reliability. By minimizing the risk of oil pump failure, these gears help protect critical engine components such as pistons, valves, and camshafts from catastrophic damage.
2 WEEK LEAD TIME OUT OF UAE, SPECIAL ORDER PART. NO REFUNDS OR RETURNS.
Factory Nissan OEM GU Patrol TB48 Clusters are here!We have secured an ongoing supply of these clusters to suit ALL Series 4 Gu Patrol models.
They can be used on series 3 as well, the drivers side window defog vent will need slight modifications to fit.
Brand new, made in Japan by Nissan0 kilometres
They come complete with the cluster, Cluster frame with chrome rings (2010 Onwards style) and the plastic front lens.4 Different configurations as follows:
ST, STL, STS Automatic (Clear Lens)ST, STL, STS Manual (Clear Lens)TI Automatic "Laser style" (Tinted Lens) TI Manual "Laser style" (Tinted Lens) (Yes, we never got TI Manuals in Australia but the UAE did)
If you have a single fuel tank models, please contact us before ordering as they are not listed as an option but we are able to order them.
Disclaimer: Changing a vehicles odometer reading to deceive or for financial gain is ILLEGAL in Australia. YOU are responsible for notifying any person's that the odometer has been replaced. Please check with your local authorities if any other steps are needed to be taken before purchasing. There are multiple repair shops across Australia that are able to match your current displayed kilometres onto your new cluster. This is the best option and we can assist with this if necessary. Please get in touch with us if you need help!
**DIRECT ORDER FROM UAE, PLEASE ALLOW 1-2 WEEKS LEAD TIME**Kit includes the following:- Dual Springs - Titanium Retainers - Seat Locators - Valve Locks
Stop timing chain rattle and keep your VCT gear happy. No need for Manual timing chain tensioner or manual VCT Gear. Run large cams with big boost with a standard Nissan tensioner.
2 WEEK LEAD TIME OUT OF UAE, SPECIAL ORDER PART. NO REFUNDS OR RETURNS
Brand New Nissan OEM TB48 Engine Loom/Harness Comes with a new main harness with plastic bracket, all connectors and clips. Also included is both injector and ignition coil harnesses.
If you have a 4 x oxygen sensor model, you will need to have the rear oxygen sensors turned off in your ecu to be able to use this loom. Please contact us before placing an order.
PLEASE CHECK Your loom and make sure you select the correct loom for your car! NO REFUNDS on special order items! If you need help PLEASE reach out to us and we will assist you.
Nitto Pistons are made by CP in the USA. Come with upgraded wrist pins made out of 9310 material. Custom compression and bore size is available to order, please contact us for any questions or orders. (Piston rings included in price)
Material: 2618 Size: 100mm Bore/ 0.020” oversize
Ross Racing Forged Pistons to suit Nissan TB48
These are a custom piston made by Ross for Spool Imports.
Pistons are available in:
Compression Ratio: 9.0:1
Bore Sizes: +0.5mm
Pistons come with rings, gudgeon pins and pin locks
Forged 2618
Tool Steel Pins
Ross Racing Pistons:
All ROSS Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.
This material has less than 1% silicon particulate content. High silicon content pistons (forged from 4032 or MS75) will not stand up to the most extreme stress placed on many racing pistons. If a crack starts to form in a high silicon piston it will continue until the piston experiences a catastrophic failure. Simply stated, adding sand to the aluminum only makes it more brittle. In the rare instance of a 2618-T61 piston cracking, the crack will continue to an area where the stress is not as great and will then stop. Another advantage of 2618-T61 over the high silicon pistons is the ability to keep its shape under extreme pressure and high RPM's. "Skirt Shrinking" is not a problem with ROSS Racing Pistons.
Suitable for TB48de engine. Rods are 4340 Forged and come with 7/16 ARP Rod bolts Grade Tested (X-Ray & Sonic) 4340 Billet Steel ONE Piece Forging
Quenched and Heat Treated
Shot Peen Hardness Treated (38HRC)
Doweled Cap for Superior Alignment
Quality ARP 2000 Series Bolts
Optional ARP Custom Age 625 Plus Series Bolts
Silicone Bronze Pin End Bushes
Balanced to Within a +/- 1 Gram Tolerance Per Set
Bore Diameters to Within +/- 0.0001" Tolerance
Sunnen Honing Machines Along with Sunnen Diamond Honing Tooling are used for both Big & Pin End Machining and Sizing
100% CNC Profiled
100% CNC Drilled & Tapped
All Spool Conrods come standard with ARP 2000 Fasteners.
These are a direct fit Conrod for all Nissan Patrol TB48 Engines.
ARP2000 7/16 Fasteners
These conrods feature:
High tensile 4340 forged steel
2 Piece forging
Hardness of HRC36-42
Dowelled caps for precision alignment
X-RAY & Sonic tested
Quenching and heat treated
Shot peened
100% Magnafluxed
Weight Matched Sets + - 1 gram
Vacuum degassed to remove impurities.
Weight: 1006g (with bolts)
No bearings are included.
Arp Headstud kit to suit TB48de Kit comes with studs, washers and nuts with torque guide sheet
We are able to custom order L19 and custom age 625 head studs, if this interests you please contact us.
Includes:
14x M12 Custom Age 625+ studs
14x Chrome Moly Steel 12-point nuts
14x hardened and parallel ground washers and a 1/2 oz. pack of ARP Ultra-Torque fastener assembly lubricant.
All ARP Custom Age 625+ studs are centerless ground, heat treated prior to thread rolling and machining, nominally rated at 270,000 psi tensile strength and are reusable as compared to OEM Torque to Yield (TTY) head bolts.
Optimum design, enhanced reliability and increased strength are the main attributes of ARP’s Pro Series Head Stud Kits.
Arp Main stud kit to suit TB48de Kit comes with Studs, washers and nuts.Tested to over 2500HP Block will need to be tunnel bored for correct fitment.
IN STOCK IN AUSTRALIA
Do you want to make serious NA power?
We have the solution for you!
Full stainless steel construction Incorporating twin 02 sensors.
(LATE MODEL 4 X 02 SENSOR MODELS WILL NEED TO HAVE REAR SENSORS TURNED OFF OR BUNGS WELDED IN TO MAKE THEM WORK)

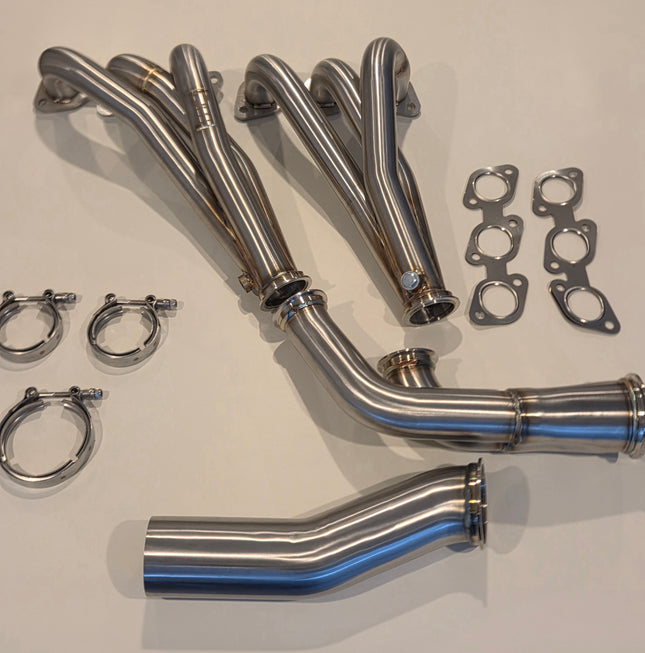

QM Nissan TB48 Headers
MASSIVE 2" Primaries Split twin 2.5" to 3.5" outlet Double Vband design Internally welded runners Flow well over 500 WHEEL hp.
These are the BIGGEST AND BADEST flowing extractors for the TB48 platform!
*Rear ac models will need one of our AC Line kits.
*1 week lead time on all QM HEADERS Orders
DBP Shimless buckets to suit TB48de EngineDLC Coated, direct replacement for the standard shim style bucketPrice is EACH Bucket Please add them individually into the cart at your preferred size
MOST SIZES ARE ORDER IN AND HAVE A LEAD TIME OF 1-2 WEEKS!
Full kit for connecting Nissan TB48 engines to the BMW ZF 8HP45 / 8HP50 / 8HP51 / 8HP70 /8HP75
The kit includes the following components: -Flywheel for direct connection to the 8HP converter, made from a special lightweight alloy AlZnMg+Ti with the strength of 42CrMo4 steel. The flywheel is designed for demanding projects and extreme loads such as 1/4 mile racing. The kit is designed to handle an engine torque of up to 2000Nm. The flywheel features a built-in starter ring gear compatible with the original BMW starter of your engine. Weight of flywhell 3.5kg -Adapter made of AW7075-T651 aluminum alloy, surpassing the strength of S355 and C45 (1.0503) steel. Thicekens 39MM -Mounting screws for the flywheel, adapter, and gearbox. - Modifications to the OEM Nissan Flex plate are required - Requires OEM crank spacer Kit for engines Nissan TB48
Compatible tranmissions with kit BMW ZF 8HP 8HP70 GA8HP70 BMW N57 N57N BMW ZF 8HP 8HP75 GA8HP75X BMW N57 N57N BMW ZF 8HP 8HP50 / 8HP50Z GA8HP50Z BMW BMW B58 B58B30 BMW ZF 8HP 8HP75Z GA8HP75Z / 8HP75 BMW B57 B57B30 BMW ZF 8HP 8HP51Z GA8HP51Z / 8HP51 BMW B48 B48B20 BMW ZF 8HP 8HP51Z GA8HP51Z / 8HP51 BMW B46 B46B20 BMW ZF 8HP 8HP45Z GA8HP45X BMW B47C/D20
We can supply MaxxECU setup for full control of the gearbox. Please message us for more details.
Due 2nd week of September!!
For Patrols that need SERIOUS amperage! 270amp Output, constant 14v feed. The big brother to our 220AMP alternator. Great for use with cars running big electrical systems, DCDC chargers and multiple batteries.
Please check what amps you are actually using before purchasing this unit, if you do not need 270AMP output opt for our 220AMP unit instead.
MAIN CHARGE CABLE UPGRADE NEEDED!PROFESIONAL INSTALLATION IS A MUST!
Our precision-engineered tube notching templates are designed to streamline your fabrication process. Easily trace these templates onto tubes to achieve perfect notches every time, cutting down on material waste and labor time. These templates are perfect for professionals and DIY enthusiasts who need consistent and accurate results for their tube projects.
Whether you're working on custom exhausts, sanitary tubing, or other tube-based designs, our templates ensure a quick, efficient, and accurate way to create clean notches with minimal effort. Save time, reduce costly mistakes, and optimize your material usage with these must-have tools for any fabrication shop.
Linishing/grinding will be needed for 100% fitment.
For custom sizes please email fabshopaus@gmail.com
