TB48 PRO LEVEL – MaxxECU TRACK Gen2 Plug & Play Package
Loom manufacturing time is approximately 3–4 weeks from date of purchase.

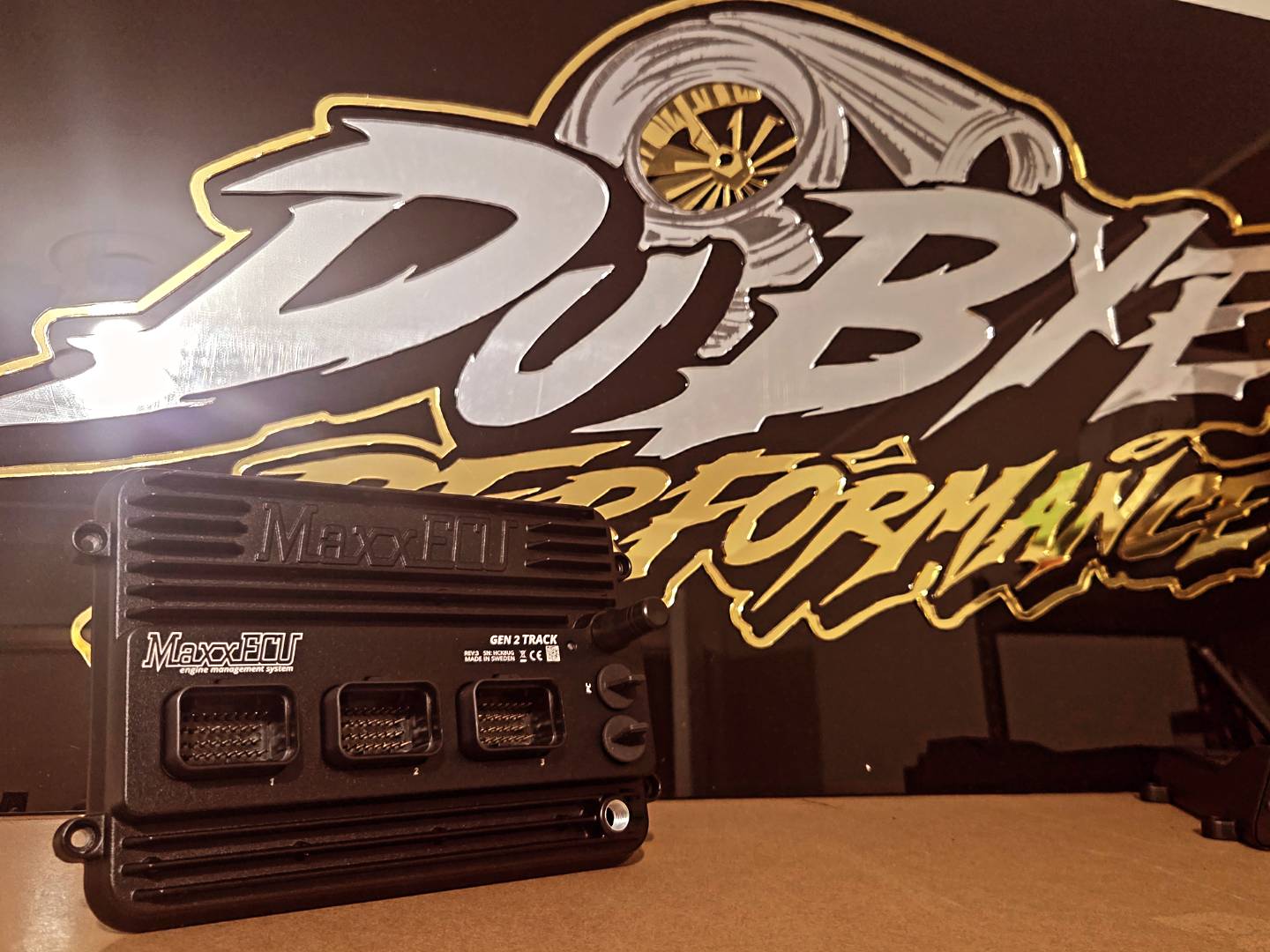

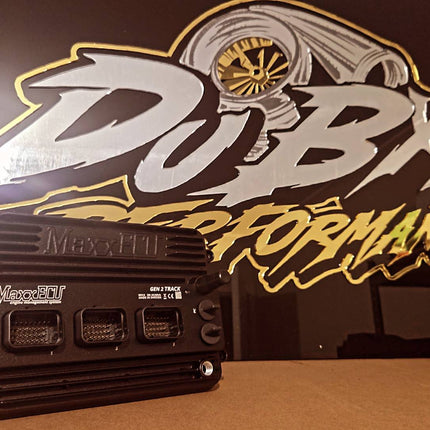

Introducing the Du-Bye Performance TB48 PRO LEVEL Package, powered by the MaxxECU TRACK Gen2.
Our PRO LEVEL package takes everything offered in our standard TB48 Plug & Play packages and steps it up with additional engine protection, cooling control and vehicle integration.
Designed for serious naturally aspirated, boosted and high-horsepower TB48 builds, the PRO LEVEL package provides a complete replacement engine harness, MaxxECU TRACK Gen2 and ECU mounting solution while retaining factory OEM cluster and vehicle functionality.
Why Choose PRO LEVEL?
The TRACK Gen2 gives us the additional ECU capability required to offer features that aren't available with our entry-level SPORT package.
The PRO LEVEL package adds:
- Full Knock Sensor Support
- PWM Electric Fan Control
- Electric Power Steering Control
- Bosch LSU 5.2 Wideband Lambda
- Additional inputs and outputs
- Greater flexibility for engine protection strategies
- More room for future upgrades and expansion
Full Knock Sensor Support
PRO LEVEL provides full knock sensor integration, allowing the MaxxECU TRACK Gen2 to monitor engine knock and utilise knock control strategies.
This provides an additional level of engine protection, particularly important for high-compression, boosted and high-powered TB48 combinations.
PWM Electric Fan Control
The PRO LEVEL harness supports PWM-controlled electric thermo fans, allowing the MaxxECU to control fan speed progressively rather than relying solely on traditional ON/OFF fan control.
This provides greater control over engine temperature and is ideal for upgraded cooling systems and high-performance electric fan setups.
Electric Power Steering Control
PRO LEVEL also includes provision for electric power steering control and integration.
The required wiring is incorporated directly into the harness, providing a much cleaner solution for Patrols being converted to electric power steering.
Bosch LSU 5.2 Wideband
The PRO LEVEL package utilises a Bosch LSU 5.2 wideband lambda sensor, giving the TRACK Gen2 accurate lambda feedback for tuning, closed-loop fuel control and engine protection strategies.

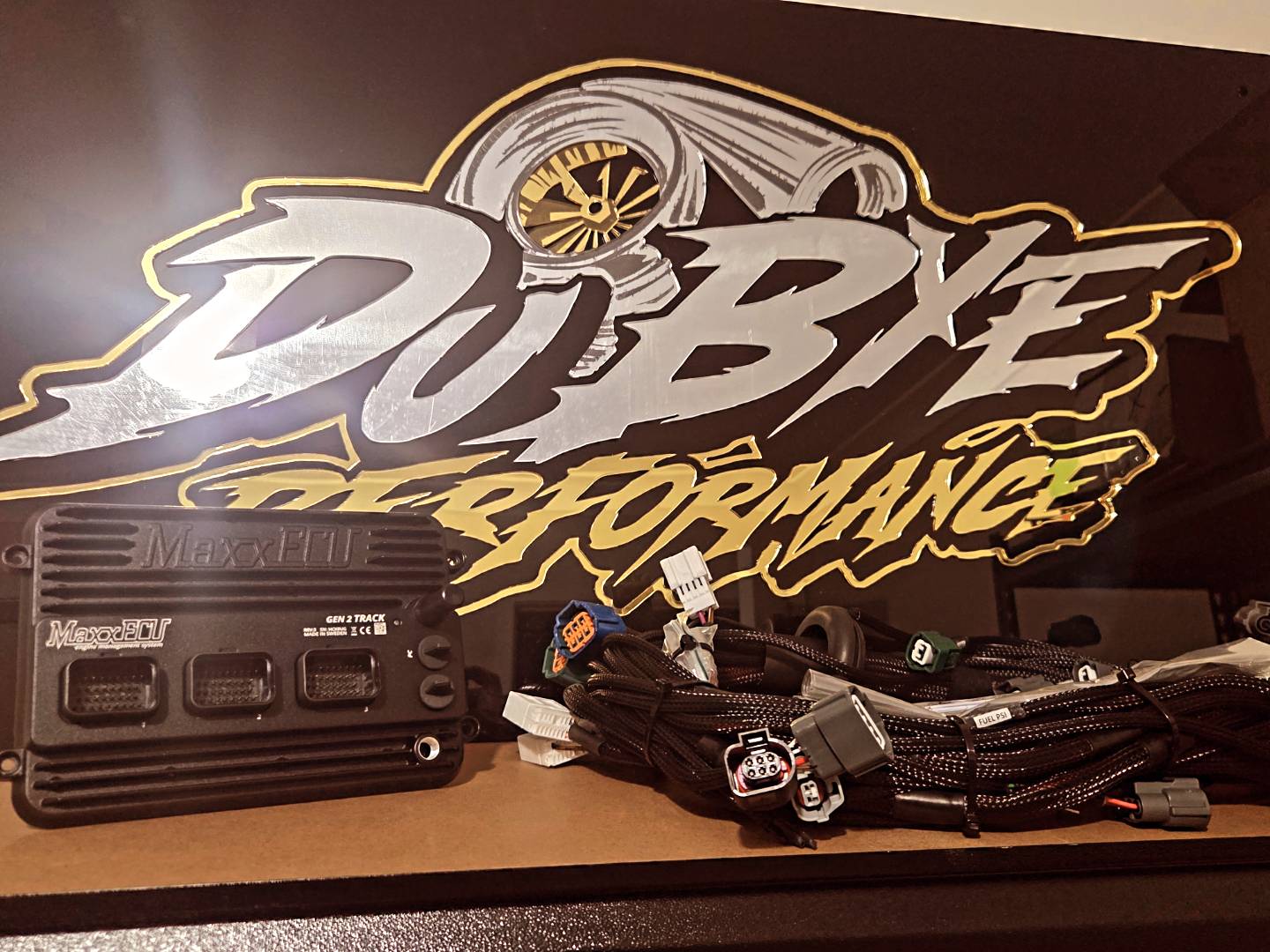

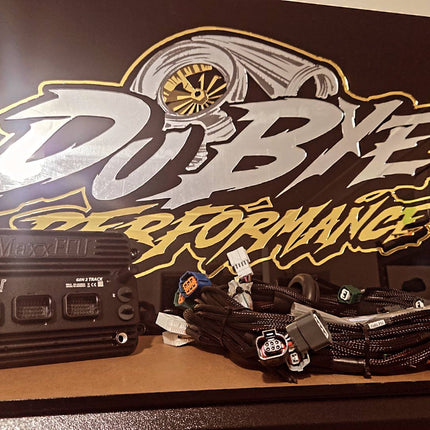

Complete TB48 Harness
Depending on your selected configuration, the PRO LEVEL harness can be supplied terminated for:
- 6 × Injectors – your choice of injector connectors
- 6 × Ignition Coils – Factory TB48 or R35 GT-R
- Factory CAS
- Factory coolant temperature sensor
- Factory water temperature sender where applicable
- Bosch LSU 5.2 Wideband Lambda
- Intake Air Temperature sensor
- Fuel pressure sensor
- Oil pressure sensor
- Oil temperature sensor
- Flex Fuel sensor
- Boost control solenoid
- Drive-By-Wire throttle body and pedal
- Full knock sensor integration
- PWM electric fan control
- Electric power steering control
- In-cabin CAN Bus expansion
- MAP sensor hose integrated internally through the loom
ZF 8HP Integration
The PRO LEVEL package can also be configured as a complete TB48 + ZF 8HP Plug & Play conversion package.
The 8HP configuration adds:
- ZF 8HP transmission connector
- Dedicated 8HP direct power feed
- Dedicated 8HP OBD diagnostic port
- BMW electronic shifter integration
- ZD30 CRD Drive-By-Wire pedal
- Bosch DBW throttle body connection
- Engine and transmission CAN integration
This allows the engine, transmission, DBW system and supporting electronics to be integrated into one purpose-built replacement harness.
Digital Dash & CAN Expansion
In-cabin CAN Bus expansion makes it easy to integrate additional CAN devices and digital displays.
MaxxECU MDash can be used via Bluetooth, or compatible CAN-based digital displays can be integrated into the system.
Built for Serious TB48 Setups
The Du-Bye Performance PRO LEVEL Package with MaxxECU TRACK Gen2 is our solution for customers wanting more control, more engine protection and more room to expand their TB48 setup.
Whether you're building a responsive naturally aspirated combination, a serious boosted TB48 or a complete ZF 8HP conversion, PRO LEVEL provides a clean, integrated platform without being restricted by the capabilities of our entry-level package.
Du-Bye Performance PRO LEVEL
MaxxECU TRACK Gen2. Full integration. Serious control. Built for the TB48.
